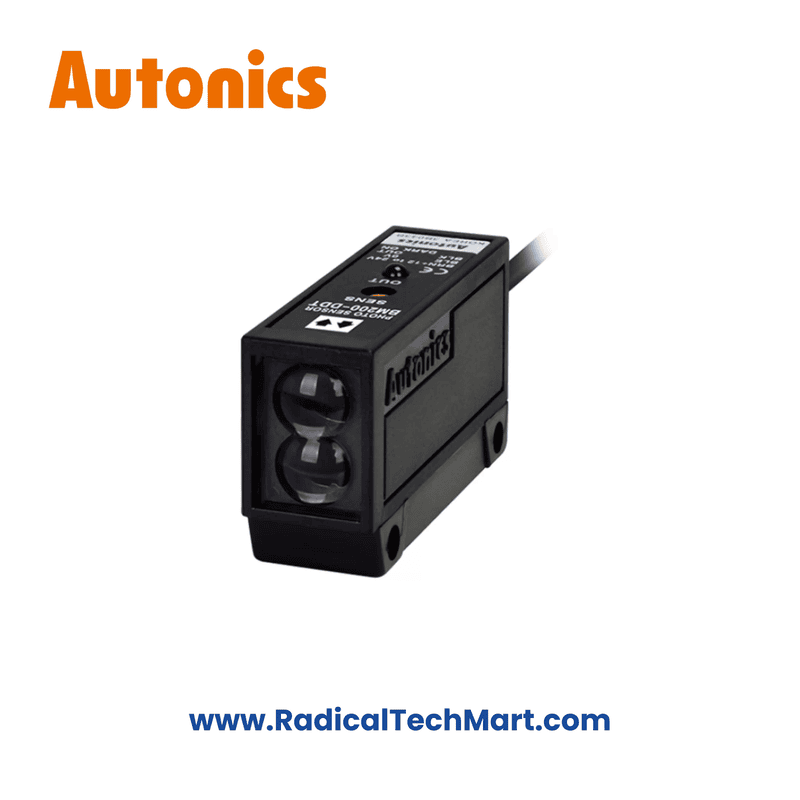

BM200-DDT Autonics Photoelectric Sensor
Non-returnable
₹2,960.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BM200-DDT |
| Sensing type | Diffuse reflective type |
| Sensing distance | 200mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 3ms |
| Power supply | 12-24VDC |
| Current consumption | Max. 40mA |
| Operation mode | Light ON(option: Dark ON) |
| Control output | NPN open collector |
| Weight | Approx. 88g |
| Protection structure | IP64 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories | Fixing bracket, Bolts, Nuts |
| Approval | CE |
